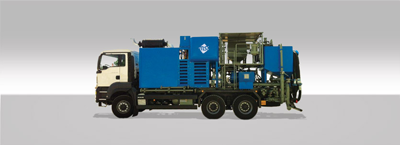

SINGLE PUMP TRUCK
| Chassis 4x6 or 6x6 | MAN, Scania, Mercedes etc. |
| Drive Engine | Detroit Diesel, Caterpillar, Deutz |
| Transmission | Allison 4700 Series |
| Triplex Pumps | MSI Hybrid (600 HP) |
| Maximum pressure * | 77 MPa (11000 PSI) |
| Maximum flow rate * | 1280 l/min (880 gpm) |
| Displacement tank | 3.2 cu.m. (20 bbl) |
| Mixing tank | 2.0 cu.m. (12.5 bbl) |
| Slurry density | 1…2,7 tons/cu.m |
Overall dimensions:
| - Length , not more | 10,0 m |
| - Width, not more | 2,55 m |
| - Height, not more | 4,0 m |
| -Weight, not more | 25 000 kg |
*for 3,5” + 4,5” plunger’s sizes
