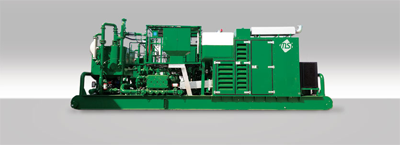

TWIN PUMP SKID
| Chassis | Skid |
| Drive Engine (2 pcs.) | Detroit Diesel, Caterpillar, Deutz |
| Transmission (2 pcs.) | Allison 4700 Series |
| Triplex Pumps (2 pcs.) | MSI Hybrid (600 HP) |
| Maximum pressure * | 77 MPa (11000 PSI) |
| Maximum flow rate * | 3400 l/min (880 gpm) |
| Displacement tank | 3.2 cu.m. (20 bbl) |
| Mixing tank | 2.0 cu.m. (12.5 bbl) |
| Slurry density | 1…2,7 tons/cu.m |
Overall dimensions:
| - Length , not more | 10,0 m |
| - Width, not more | 2,65m |
| - Height, not more | 3,5 m |
| -Weight, not more | 25 000 kg |
*for 3,5” + 4,5” plunger’s sizes
